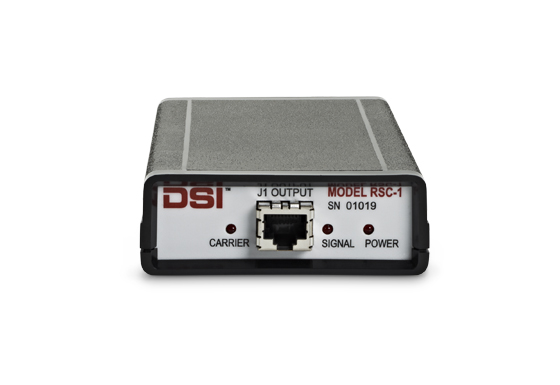

DSI PhysioTel® Receivers – RSC-1 for Specialty Applications

The RSC-1’s small design accommodates a variety of specialized cage configurations and can be placed in many locations where the RPC-1 and RMC-1 receivers are too large. Examples include metabolic cages, running wheels, treadmills, etc.  The RSC-1 reception range and other performance characteristics are comparable to the RPC-1 receiver.

Review the telemetry receiver comparison chart for specifications.

Key Features

  • Incorporates support for an auxiliary antenna to accommodate unique monitoring designs.
  • Supports the Distributed Receiver Array (DRA) functionality for extended range applications, such as Open Field tests.
  • Quick visual identification of Serial Number without the need to disturb the animal or move the cage.
  • Easy, visual indicators of performance.
    • The Carrier Indicator provides an indication of a clear, strong signal from the transmitter.
    • The Power Indicator makes it easy to tell if the receiver is connected and receiving power.
    • The Signal Indicator transitions more gradually from OFF to ON as a transmitter enters the reception range.  This indicator is intended to be an aid in tuning external antennas.
  • Weighs only 182 grams

Implant compatibility:
The RSC-1 is compatible with all 455KHz implant models included in the following system platforms:

  • PhysioTel
  • PhysioTel HD

It does not support PhysioTel™ Digital, the 4ET or the F50-W transmitters that operate at alternate frequencies.

Hardware compatibility:
The RSC-1 is compatible with the MX2. It is possible to place the RSC-1 receiver as much as 100 meters from the MX2, which automatically detects and forwards the model and serial number of the RSC-1 to the software.

Software Compatibility:


Request more information on these products.
