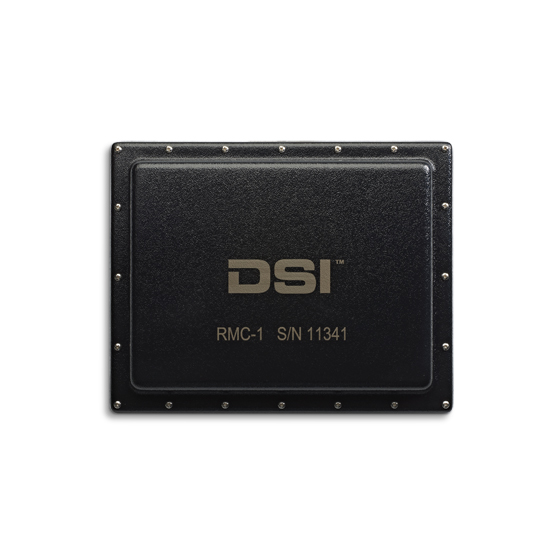

DSI PhysioTelTM Receivers – RMC-1 for Large Animals

The RMC-1 Receiver is most often used for monitoring rabbits, ferrets, primates, dogs, and other animals housed in metal cages. The RMC-1 may be used to monitor animals housed in plastic basin cages when provisions are made to accommodate the cable exiting the rear of the housing.

The RMC-1 receiver provides reliable reception of data transmitted via digital telemetry and has two receiving antennae oriented at right angles to minimize dropouts due to directionality of the transmission pattern.
Key Features

  • Stainless steel and polycarbonate housing, along with a gasket seal and water-resistant connector, make it possible to spray down the cages with the receiver in place.
  • Built to last, the RMC-1 receiver housing has demonstrated successfully that it withstands the abuse of primates.*
  • DSI offers a right angle connector for the RMC-1, which reduces the space needed to accommodate the cable exiting the rear of the RMC-1 receiver. This offers the flexibility of placing cages closer to walls or adjacent cages.

Implant compatibility:
The RMC-1 is compatible with implant models include in the following system platforms:

  • PhysioTel
  • PhysioTel HD

Hardware compatibility:
The RMC-1 is compatible with the MX2. It is possible to place the RMC-1 receiver as much as 100 meters from the MX2, which automatically detects and forwards the model and serial number of the RMC-1 to the software.



Request more information on these products.
