SoHo Telemetry System

Transform your studies with an advanced implantable telemetry system designed to break free from traditional constraints with the quality you trust. The SoHo telemetry system empowers you to design and execute studies on your terms.

Schedule a Call Request a Quote



Versatility to Inspire Innovation

  • Ignite innovation with a versatile system designed to fuel creativity and adapt to your evolving research needs.
  • The SoHo telemetry system seamlessly integrates physiological monitoring in high-density setups, such as ventilated racks and environmental chambers, while also supporting behavioral endpoints like mazes, treadmills, and behavioral boxes.

Efficient Design, Unmatched Convenience

  • Streamline your research with user-controlled implant power management to extend battery life and operate on your terms.
  • Remote power management and real-time status notifications minimize physical interactions, reducing stress artifacts while enhancing animal welfare and researcher safety.

Advancing the 3Rs for Ethical Research

  • Promote animal welfare with a system that reduces stress, supports social housing, and minimizes the number of animals required per study—all while adhering to the highest ethical and regulatory standards.




What Clients Are Saying

"I’ve used SoHo to perform temperature telemetry experiments within indirect calorimetry cages in the Sable Systems Promethion temperature cabinet. I was delighted that the Bluetooth signal had no problems working with the metal temperature cabinet. This SoHo Bluetooth setup has saved so much time and effort trying to set up old receiver bases around indirect calorimetry cages in temperature cabinets. Additionally, the ability to do temperature telemetry on group-housed animals opens up a whole new experimental paradigm. I’ve always found the DSI teams very helpful and prompt in replying to inquiries and sorting out any small technical problems.”

Dr. Eleanor McKay
Postdoctoral Researcher
University of Lausanne






Implantable Telemetry for extra small and small animals


mouse
Hamster
rat
Guinea-pig

WHAT IS SoHo?

Components of the SoHo System

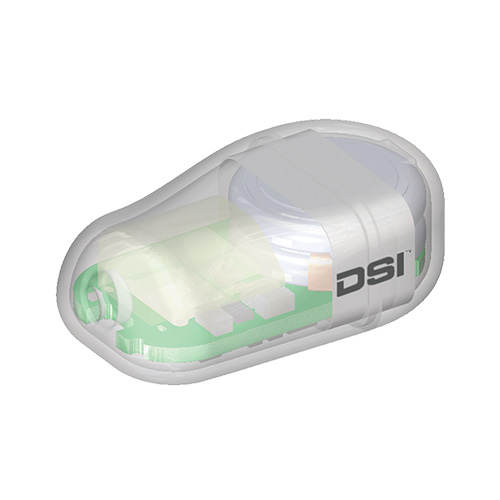

Soho-temperature-activity-implant

SoHo Implants

  • Collect real-time, 24/7 physiologic data collection without disturbing the animal.
  • Deliver clean, reliable data with higher statistical power.
  • Support high-density and socially housed setups for natural animal behavior.
  • Optimize implant battery life with user-managed remote power modes.

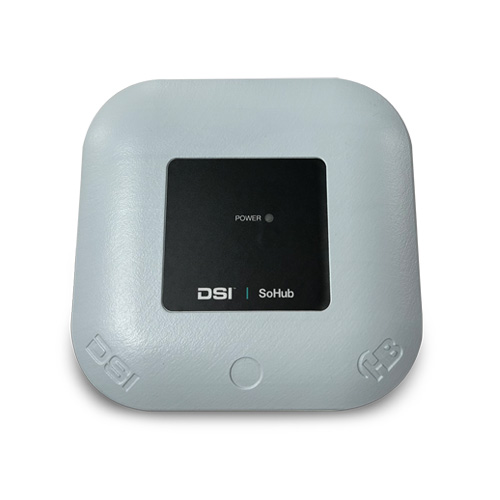

Soho-transceiver

SoHub Transceiver

  • Communicates with the implants so there is no disruption to the study.
  • Collect data from up to 16 implants per SoHub and 96 implants per environment.
  • Simple setup with fewer components using USB communication & power.
  • Quick identification with matching color-coded labels on the device and in Ponemah.
  • Save space with a compact design and versatile mounting options.

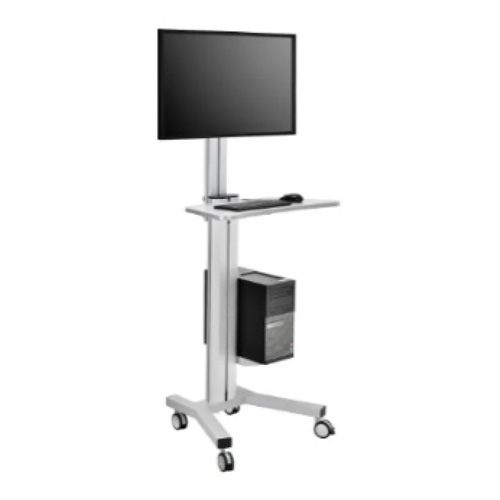

Soho-rolling-rack

SoHo Rolling Rack

  • Wherever your experiments take you, the mobile Ponemah acquisition station can follow.
  • Lab ready, corrosive resistant materials.
  • No-mess cable management and integrated power cord for simplified mobility.

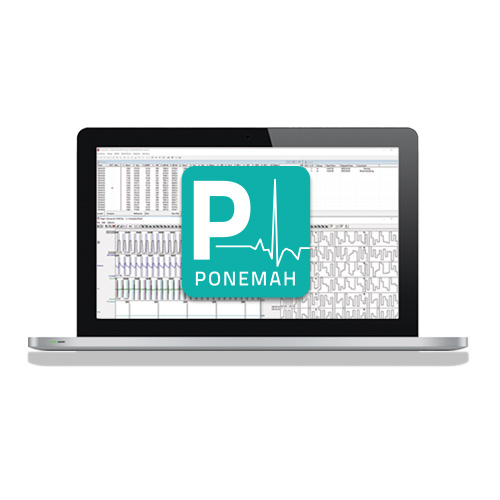

ponemah-sftware

Ponemah Software

  • Confidently collect, accurately analyze, and quickly summarize your telemetry data.
  • Comply with GLP and 21 CFR Part 11 regulations with data security & electronic record features.
  • Learn More
SoHo Accessories

Coming Soon: SoHo Accessories

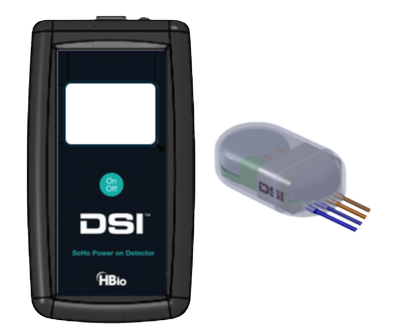

  • SoHo POD: ensure a smooth and reliable study setup with a
    handheld power on detector that takes the guesswork out of implant preparation
  • SoHo SIM: A versatile & reliable tool used to simulate realistic physiological signals from SoHo telemetry implants for system setup, user training, and GLP validation. Ensure precision, consistency, and reliability in telemetry-based research and system operations.

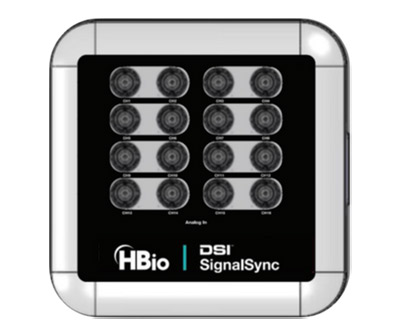

SignalSync

Coming Soon: SignalSync

  • Comprehensive Data Integration: Combine telemetry with analog and digital signals from tools like running wheels, blood flow meters, isolated heart perfusion systems, pressure catheters, stimulus delivery tools, and more.
  • Enhanced Feedback Loop Studies: Leverage remote connection capabilities to enable real-time monitoring and dynamic adjustments during experiments.
  • Extended Study Design Flexibility: Expand your possibilities by integrating diverse inputs into a single, cohesive dataset for a more detailed and insightful analysis.

SoHo IMPLANTS

Specifications

Model

Biopotential

Temperature

 Activity

Warranted Battery Life (Continuous)

 Implant Weight (g)

 Implant Volume (cc)

Minimum Animal Weight (g)

SoHo-X00    1 1 3 months  2.2 1.2 25 (IP), 17 (Sub Q)
SoHo-X01 Coming soon!  1  2 1 1 month  2.6  1.5 25 (IP), 17 (Sub Q)
SoHo-X02 Coming soon!  2  2 1 1 month   2.6 1.5  25 (IP), 17 (Sub Q)
SoHo-S00    2 1 12 months  6.0  4.2 175
SoHo-S01 Coming soon!  1  2  4.5 months 6.0 4.2  175
SoHo-S02 Coming soon!  2  2 1 4.5 months  6.0 4.2 175

SERVICES

Click HERE to access our world class service offerings


A SOLUTION FOR MULTIPLE USE CASES

Applications for the SoHo System

EEG + EMG: Analyze Neurological and Cognitive Conditions

  • Real-time brain activity monitoring in longitudinal studies with the same subject, allowing for quantification of behavioral and physiologic change over time
  • Diagnosis of neurological disorders, including epilepsy, sleep, and brain tumors
  • Cognitive and behavioral studies, including attention, memory, and decision-making
  • Emotional and stress responses for mental health conditions, including anxiety and depression


More Details

ECG: Evaluate Cardiovascular Function

  • Heart rate and ECG are used as biomarkers of ischemia and myocardial infarction (MI)
  • Monitoring heart rate and rhythm to detect arrhythmia, ischemia, and other cardiac conditions
  • Analyzing variations in heart rate variability (HRV) to assess autonomic nervous system function and its impact on cardiovascular health

More Details

Core Body Temperature: Assess Thermoregulation

  • Critical to circadian rhythm and infectious disease studies including onset and trigger to treat
  • Confidently acquire real-time data from challenging Biological Safety Level (BSL) environments with a miniature hardware footprint.


More Details

Combined Applications

  • Integrate with behavioral and metabolic equipment to study the connection between physiological and behavioral responses in various disease models; valuable for research in areas such as sleep, stress, anxiety, learning, memory, social interaction, drug effects, pain, neurological disorders, and exercise.
  • Add telemetry to respiratory solutions to investigate the link between cardiovascular or neurological function and respiratory function in studies on cardiovascular interactions, sleep apnea, neural control of breathing, and stress or anxiety.


More Details
