Large Animal Telemetry Driving Your Research Success
Reduces animal stress, improves animal welfare, and delivers the quality data you need.
PhysioTel Digital
The best choice for you and your test subjects
Reliable, accurate data for entire study - low drift pressure sensors

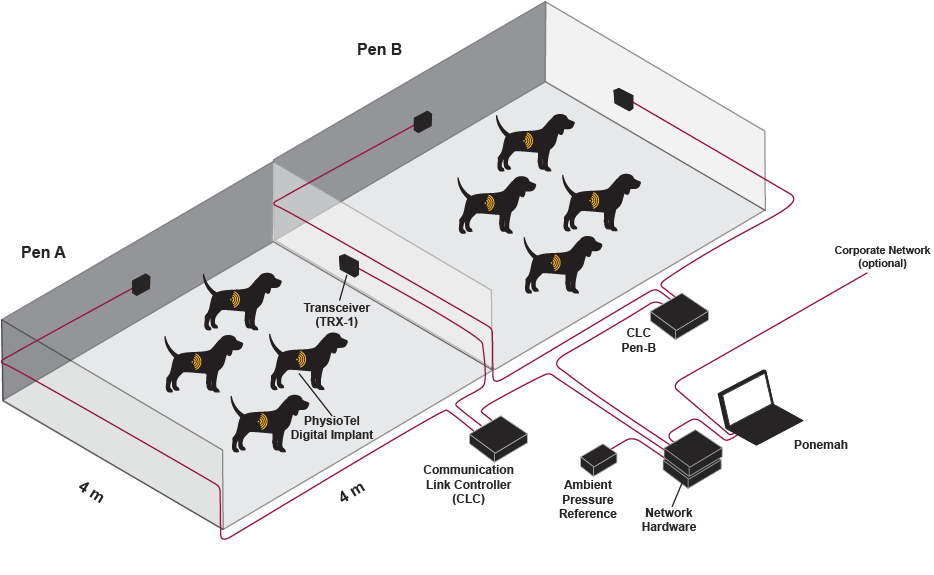

Minimize data loss - hardware adapts to your unique space
Fast study start-up - automated configuration
Enhance animal welfare - social housing capable

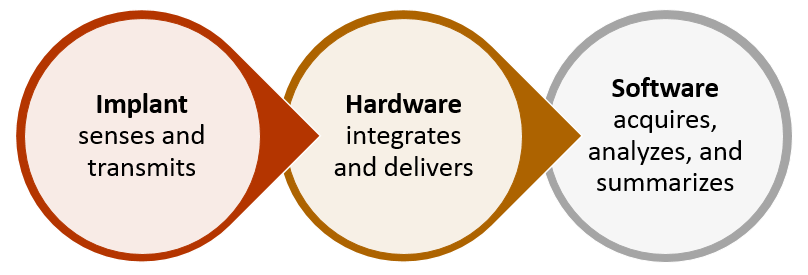

Learn more about telemetry hardware...

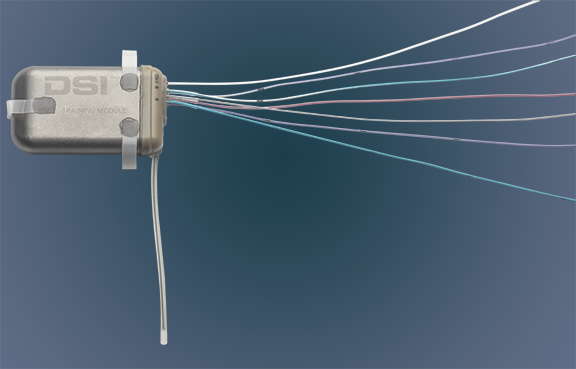

L series implants
Designed for chronic physiologic monitoring research in colony animals. Often used in safety pharmacology studies.
Learn more

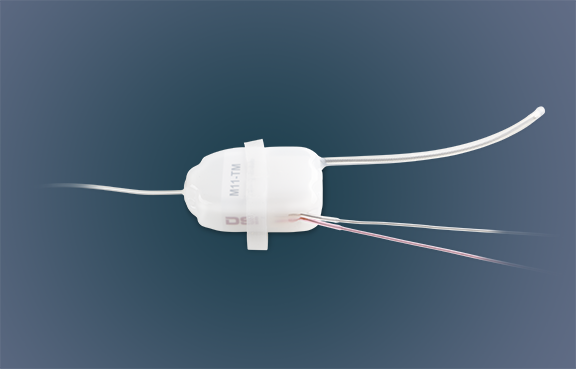

M series implants
Smaller implants for an extended range of species. Often used in toxicology and biological defense studies.
Learn more
Large Animal Telemetry
DSI offers multiple telemetry implants options for large animals such as canines, non-human primates, swine, sheep, and similar sized animals that measure a variety of parameters.
Model
Weight (g)
Volume (cc)
Pressure Channels
LV Pressure Capable
Respiration*
Temperature
Activity
Biopotential Channels**
Glucose
Battery Life (days)
L21
56
29
2
84
L11
56
29
105
L11R
56
29
120
#
L04
56
29
4
95^
L03
56
29
3
90^
M11
13.7
11
35
M10
13.7
11
55
M1G
13.7
11
48
M0G
13.7
11
95
M01
13.7
11
40
M00
13.7
11
100
D70-PCTR
49
33
75
D70-EEE
37
25
3
60
* L11R and D70-PCTR can measure respiratory rate and volume via impedance; other implants can measure
respiratory rate from pleural pressure, blood pressure or diaphragmatic EMG.
** All L21 and L11 models are manufactured with the Solid Tip Lead, unless requested otherwise.
^Warranted battery life for China is 85 days for L03 and 90 days for L04.
#
LV capable L11R warranted battery life is 105 days.
PhysioTel_Digital
Casestudy_PTD_Bayer
Casestudy_PTD_Biotrial
Additional resources:
Implant specifications
Solid tip lead
Telemetry Hardware
