Blood Pressure Respiration Analysis Module

The Blood Pressure Respiration (BPR) Analysis Module can analyze any pressure from the circulatory system and to derive respiration values from the cardiac cycle.

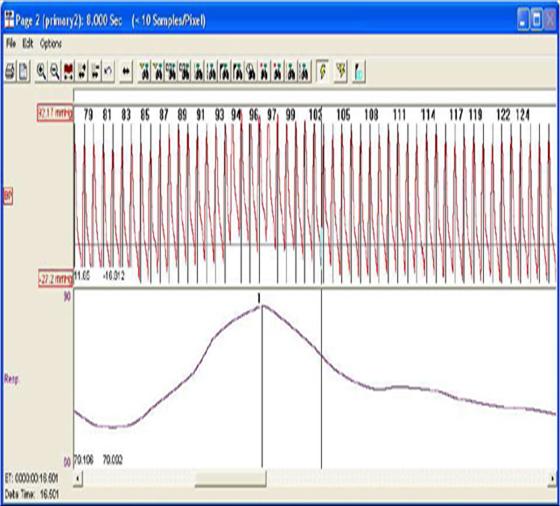

In the figure below the Blood Pressure Respiration signal is displayed with validation marks.  The validation mark identifies the Max Volume Mark point.

The list below describes the parameters calculated by the analysis module either in real-time or during subsequent analysis.

Model PNM-BPR100W

Name		Definition
RNum		The cycle number of each complete respiration cycle.
RInt		The time interval, in milliseconds, over which a full respiration waveform is detected.
RBpm		Respiration rate in breaths-per-minute

NOTE:
In order for the BPR analysis to function properly, a BP channel needs to be configured and the BPR channel must be associated with the acquired BP channel.
